How to run a Cosmological EoR Simulation¶
In this tutorial we will show how to run a simple cosmological EoR simulation with the pyC\(^2\)Ray code. This correspond to the main scirpt to run the code and it require some basic functions.
[13]:
import pyc2ray as pc2r
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
import astropy.units as u
import astropy.constants as cst
Global parameters¶
As we saw in the the tutorial on the parameter of pyC\(^2\)Ray, most of the variables are defined in a parameter file, parameters.yml. However, we still need to define some global parameters for the cosmological simulation.
Moreover, we define the number of refined time-steps that we want to do in between redshift steps, num_steps_between_slices. This splits further the redshift-step and allows for a faster convergence of the ODE solution.
Lastly, we need to define the redshifts to simulate. We suggest, you pick the value corresponding to the snapshots of the inputs (i.e.: density field and source files).
[14]:
# parameter file
paramfile = 'parameters.yml'
# refined time-steps
num_steps_between_slices = 20
# Define redshift list
redshifts = np.linspace(12, 10, 20)
Here we define a python class for our simulation as subclass of the basic C2Ray class, which is a standard version.
[15]:
class C2Ray_tutorial(pc2r.c2ray_base.C2Ray):
def __init__(self, paramfile):
"""Basis class for a C2Ray Simulation
Parameters
----------
paramfile : str
Name of a YAML file containing parameters for the C2Ray simulation
"""
super().__init__(paramfile)
self.printlog('Running: "C2Ray tutorial for %d Mpc/h volume"' %self.boxsize)
# ===========================================
# HEREAFTER: USER DEFINED METHODS
# ===========================================
def read_sources(self, z, nsrc, dt):
np.random.seed(918)
# Read random sources (e.g.: *.npy, *.h5, etc.)
pos_halo = np.random.uniform(low=0, high=sim.boxsize, size=(nsrc, 3))
mhalo = np.random.uniform(1e8, 1e14, nsrc)*u.Msun
# Define stellar-to-halo relation
fstar = 0.1
# Define escaping fraction
fesc = 0.1
# sum togheter the star mass for sources within the same voxel
pos_star, mstar = pc2r.other_utils.bin_sources(srcpos_mpc=pos_halo, mstar_msun=mhalo*fstar*fesc, boxsize=sim.boxsize, meshsize=sim.N)
"""
pos_star = np.array([sim.N//2, sim.N//2, sim.N//2])
pos_star = pos_star[None,...]
mstar = np.array([1e14])
"""
# this reference flux is necessary only for a numercial reason
S_star_ref = 1e48
# The normalize flux in CGS units
dotN = (mstar*u.Msun/(cst.m_p*dt)).cgs.value
# calculate some quantity thtat you want to print (e.g. total number of ionizing photons)
self.tot_phots = np.sum(dotN * dt)
return pos_star, dotN/S_star_ref
def read_density(self, z):
# Read the density field
self.ndens = 1e-6 * np.ones((sim.N, sim.N, sim.N))
return self.ndens
[16]:
# init the C2Ray class for the tutorial
sim = C2Ray_tutorial(paramfile)
Number of GPUS 1
_________ ____
____ __ __/ ____/__ \ / __ \____ ___ __
/ __ \/ / / / / __/ // /_/ / __ `/ / / /
/ /_/ / /_/ / /___ / __// _, _/ /_/ / /_/ /
/ .___/\__, /\____//____/_/ |_|\__,_/\__, /
/_/ /____/ /____/
GPU Device ID 0: "NVIDIA RTX A1000 6GB Laptop GPU" with compute capability 8.6
Successfully allocated 536.871 Mb of device memory for grid of size N = 256, with source batch size 1
Welcome! Mesh size is N = 256.
Simulation Box size (comoving Mpc): 1.280e+02
Cosmology is on, scaling comoving quantities to the initial redshift, which is z0 = 12.000...
Cosmological parameters used:
h = 0.6766, Tcmb0 = 2.725e+00
Om0 = 0.3097, Ob0 = 0.0490
Using power-law opacity with 10,000 table points between tau=10^(-20) and tau=10^(4)
Using Black-Body sources with effective temperature T = 5.0e+04 K and Radius 1.437e-11 rsun
Spectrum Frequency Range: 3.288e+15 to 1.316e+17 Hz
This is Energy: 1.360e+01 to 5.442e+02 eV
Integrating photoionization rates tables...
INFO: No heating rates
Successfully copied radiation tables to GPU memory.
---- Calculated Clumping Factor (constant model):
min, mean and max clumping : 1.000e+00 1.000e+00 1.000e+00
---- Calculated Mean-Free Path (constant model):
Maximum comoving distance for photons from source mfp = 15.00 cMpc (constant model).
This corresponds to 30.000 grid cells.
Using ASORA Raytracing ( q_max = 52 )
Running in non-MPI (single-GPU/CPU) mode
Starting simulation...
Running: "C2Ray tutorial for 128 Mpc/h volume"
Redshift Loop¶
We can now define the main cycle that loop over the different redshift. Within each redshift-step, a
set_timestep: get the time length of the current redshift step (inherited from c2ray_base.py).read_density: read the IGM density field (custom function)read_sources: read the halos position and mass (custom function)cosmo_evolve: (inherited from c2ray_base.py)evolve3D: (inherited from c2ray_base.py)cosmo_evolve_to_now: (inherited from c2ray_base.py)write_output: inherited from c2ray_base.py to save outputs and summary
[17]:
for k in range(redshifts.size-1):
# redshift at the begin and end of the step
zi = redshifts[k]
zf = redshifts[k+1]
# Write a nice header in pyc2ray log file
sim.printlog("\n=========== Doing redshift %.3f to %.3f ===========\n" %(zi, zf), sim.logfile)
# Compute timestep of current redshift slice
dt = sim.set_timestep(zi, zf, num_steps_between_slices)
# Read density files
sim.read_density(z=zi)
# Read source files
srcpos, normflux = sim.read_sources(nsrc=10, z=zi, dt=dt)
# Set redshift to current slice redshift
sim.zred = zi
# Loop over timesteps
for t in range(num_steps_between_slices):
# Evolve Cosmology: increment redshift and scale physical quantities (density, proper cell size, etc.)
sim.cosmo_evolve(dt)
# Evolve the simulation: compute column density -> get photoionization rates -> do chemistry (repeat until convergence)
sim.evolve3D(dt, normflux, srcpos)

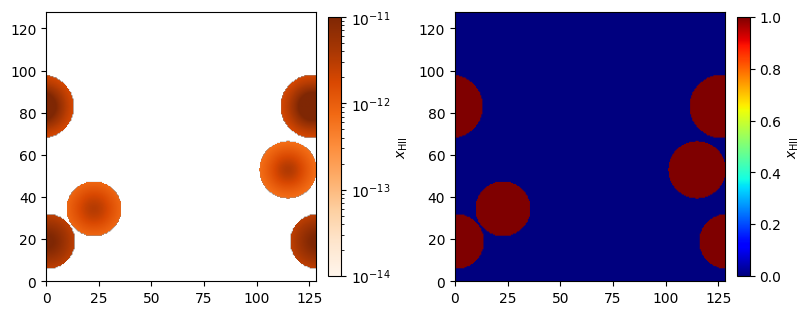

# You can eventually plot on the fly to have a look at the simulation
fig, axs = plt.subplots(figsize=(8, 8), nrows=1, ncols=2, constrained_layout=True)
# plot photoionization rate and hydrogen ionized fraction
#im = axs[0].imshow(np.sum(sim.phi_ion, axis=0), norm=LogNorm(vmin=1e-14, vmax=1e-11), cmap='Oranges', extent=[0, sim.boxsize, 0, sim.boxsize])
im = axs[0].imshow(sim.phi_ion[0], norm=LogNorm(vmin=1e-14, vmax=1e-11), cmap='Oranges', extent=[0, sim.boxsize, 0, sim.boxsize])
plt.colorbar(im, ax=axs[0], label=r'$x_\mathrm{HII}$', pad=0.02, fraction=0.048)
#im = axs[1].imshow(np.sum(sim.xh, axis=0), vmin=0, vmax=1, cmap='jet', extent=[0, sim.boxsize, 0, sim.boxsize])
im = axs[1].imshow(sim.xh[0], vmin=0, vmax=1, cmap='jet', extent=[0, sim.boxsize, 0, sim.boxsize])
plt.colorbar(im, ax=axs[1], label=r'$x_\mathrm{HII}$', pad=0.02, fraction=0.048)
plt.show(), plt.clf()
# Evolve cosmology over final half time step to reach the correct time for next slice
sim.cosmo_evolve_to_now()
# Write outputs (HII field and photoioniation rate) of the redshift step after updating the neutral fraction
sim.write_output(z=zi, ext='.npy')
print('Simulation ended.')
Rank 0 copied source data to device.
Calling evolve3D...
dr [Mpc]: 3.847e-02
dt [years]: 2.261e+05
Running on 10 source(s), total normalized ionizing flux: 8.98e+08
Mean density (cgs): 9.994e-07, Mean ionized fraction: 1.200e-03
Convergence Criterion (Number of points): 3
Rank=0 is doing Raytracing... took 0.32s.
Doing Chemistry... took 1.6 s.
Number of non-converged points: 1115412 of 16777216 ( 6.648 % ), Relative change in ionfrac: 1.22e+02
Rank=0 is doing Raytracing... took 0.32s.
Doing Chemistry... took 1.5 s.
Number of non-converged points: 1114858 of 16777216 ( 6.645 % ), Relative change in ionfrac: 5.69e-01
Rank=0 is doing Raytracing... took 0.30s.
Doing Chemistry... took 1.5 s.
Number of non-converged points: 1085360 of 16777216 ( 6.469 % ), Relative change in ionfrac: 2.58e-01
Rank=0 is doing Raytracing... took 0.30s.
Doing Chemistry... took 1.3 s.
Number of non-converged points: 969272 of 16777216 ( 5.777 % ), Relative change in ionfrac: 8.25e-02
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 755477 of 16777216 ( 4.503 % ), Relative change in ionfrac: 3.34e-02
Rank=0 is doing Raytracing... took 0.27s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 449984 of 16777216 ( 2.682 % ), Relative change in ionfrac: 1.17e-02
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 296928 of 16777216 ( 1.770 % ), Relative change in ionfrac: 3.38e-03
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 141813 of 16777216 ( 0.845 % ), Relative change in ionfrac: 7.94e-04
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 44521 of 16777216 ( 0.265 % ), Relative change in ionfrac: 1.56e-04
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 0 of 16777216 ( 0.000 % ), Relative change in ionfrac: 2.66e-05
Multiple source convergence reached after 10 ray-tracing iterations.
Rank 0 copied source data to device.
Calling evolve3D...
dr [Mpc]: 3.848e-02
dt [years]: 2.261e+05
Running on 10 source(s), total normalized ionizing flux: 8.98e+08
Mean density (cgs): 9.982e-07, Mean ionized fraction: 5.840e-02
Convergence Criterion (Number of points): 3
Rank=0 is doing Raytracing... took 0.32s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 378698 of 16777216 ( 2.257 % ), Relative change in ionfrac: 3.15e+01
Rank=0 is doing Raytracing... took 0.25s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 234562 of 16777216 ( 1.398 % ), Relative change in ionfrac: 1.38e-02
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 168666 of 16777216 ( 1.005 % ), Relative change in ionfrac: 4.52e-03
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.3 s.
Number of non-converged points: 141454 of 16777216 ( 0.843 % ), Relative change in ionfrac: 1.11e-03
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.3 s.
Number of non-converged points: 62090 of 16777216 ( 0.370 % ), Relative change in ionfrac: 2.09e-04
Rank=0 is doing Raytracing... took 0.25s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 0 of 16777216 ( 0.000 % ), Relative change in ionfrac: 3.15e-05
Multiple source convergence reached after 6 ray-tracing iterations.
<Figure size 640x480 with 0 Axes>
Rank 0 copied source data to device.
Calling evolve3D...
dr [Mpc]: 3.850e-02
dt [years]: 2.261e+05
Running on 10 source(s), total normalized ionizing flux: 8.98e+08
Mean density (cgs): 9.969e-07, Mean ionized fraction: 6.282e-02
Convergence Criterion (Number of points): 3
Rank=0 is doing Raytracing... took 0.32s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 202250 of 16777216 ( 1.206 % ), Relative change in ionfrac: 2.99e+01
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 141110 of 16777216 ( 0.841 % ), Relative change in ionfrac: 6.59e-03
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 106373 of 16777216 ( 0.634 % ), Relative change in ionfrac: 1.22e-03
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 61996 of 16777216 ( 0.370 % ), Relative change in ionfrac: 1.72e-04
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 0 of 16777216 ( 0.000 % ), Relative change in ionfrac: 1.92e-05
Multiple source convergence reached after 5 ray-tracing iterations.
<Figure size 640x480 with 0 Axes>
Rank 0 copied source data to device.
Calling evolve3D...
dr [Mpc]: 3.851e-02
dt [years]: 2.261e+05
Running on 10 source(s), total normalized ionizing flux: 8.98e+08
Mean density (cgs): 9.957e-07, Mean ionized fraction: 6.533e-02
Convergence Criterion (Number of points): 3
Rank=0 is doing Raytracing... took 0.34s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 156688 of 16777216 ( 0.934 % ), Relative change in ionfrac: 2.91e+01
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.4 s.
Number of non-converged points: 97177 of 16777216 ( 0.579 % ), Relative change in ionfrac: 2.20e-03
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.3 s.
Number of non-converged points: 45558 of 16777216 ( 0.272 % ), Relative change in ionfrac: 2.53e-04
Rank=0 is doing Raytracing... took 0.26s.
Doing Chemistry... took 1.3 s.
Number of non-converged points: 0 of 16777216 ( 0.000 % ), Relative change in ionfrac: 2.31e-05
Multiple source convergence reached after 4 ray-tracing iterations.
<Figure size 640x480 with 0 Axes>
Rank 0 copied source data to device.
Calling evolve3D...
dr [Mpc]: 3.853e-02
dt [years]: 2.261e+05
Running on 10 source(s), total normalized ionizing flux: 8.98e+08
Mean density (cgs): 9.945e-07, Mean ionized fraction: 6.669e-02
Convergence Criterion (Number of points): 3
Rank=0 is doing Raytracing... took 0.32s.
Doing Chemistry...
---------------------------------------------------------------------------
KeyboardInterrupt Traceback (most recent call last)
Cell In[17], line 28
25 sim.cosmo_evolve(dt)
27 # Evolve the simulation: compute column density -> get photoionization rates -> do chemistry (repeat until convergence)
---> 28 sim.evolve3D(dt, normflux, srcpos)
30 # You can eventually plot on the fly to have a look at the simulation
31 fig, axs = plt.subplots(figsize=(8, 8), nrows=1, ncols=2, constrained_layout=True)
File ~/codes/pyC2Ray/pyc2ray/c2ray_base.py:249, in C2Ray.evolve3D(self, dt, src_flux, src_pos)
238 self.xh, self.phi_ion, self.coldens = evolve3D(dt=dt, dr=self.dr,
239 src_flux=src_flux, src_pos=src_pos,
240 use_gpu=self.gpu, max_subbox=self.max_subbox, subboxsize=self.subboxsize, loss_fraction=self.loss_fraction,
(...)
246 sig=self.sig, bh00=self.bh00, albpow=self.albpow, colh0=self.colh0, temph0=self.temph0, abu_c=self.abu_c,
247 logfile=self.logfile, quiet=False)
248 else:
--> 249 self.xh, self.phi_ion, self.coldens = evolve3D(dt=dt, dr=self.dr,
250 src_flux=src_flux, src_pos=src_pos,
251 use_gpu=self.gpu, max_subbox=self.max_subbox, subboxsize=self.subboxsize, loss_fraction=self.loss_fraction,
252 use_mpi=False, comm=None, rank=0, nprocs=1, # mpi flag, comm, rank=0, nproc=1
253 temp=self.temp, ndens=self.ndens, xh=self.xh, clump=self.clumping_factor,
254 photo_thin_table=self.photo_thin_table, photo_thick_table=self.photo_thick_table,
255 minlogtau=self.minlogtau, dlogtau=self.dlogtau,
256 R_max_LLS=self.R_max_LLS, convergence_fraction=self.convergence_fraction,
257 sig=self.sig, bh00=self.bh00, albpow=self.albpow, colh0=self.colh0, temph0=self.temph0, abu_c=self.abu_c,
258 logfile=self.logfile, quiet=False)
File ~/codes/pyC2Ray/pyc2ray/evolve.py:251, in evolve3D(dt, dr, src_flux, src_pos, use_gpu, max_subbox, subboxsize, loss_fraction, use_mpi, comm, rank, nprocs, temp, ndens, xh, clump, photo_thin_table, photo_thick_table, minlogtau, dlogtau, R_max_LLS, convergence_fraction, sig, bh00, albpow, colh0, temph0, abu_c, logfile, quiet)
249 printlog("Doing Chemistry...",logfile,quiet,' ')
250 # Apply the global rates to compute the updated ionization fraction
--> 251 conv_flag = libc2ray.chemistry.global_pass(dt, ndens, temp, xh, xh_av, xh_intermed, phi_ion, clump, bh00, albpow, colh0, temph0, abu_c)
253 # TODO: the line blow is the same function but completely in python (much slower then the fortran version, due to a lot of loops)
254 #xh_intermed, xh_av, conv_flag = global_pass(dt, ndens, temp, xh, xh_av, xh_intermed, phi_ion, clump, bh00, albpow, colh0, temph0, abu_c)
256 printlog(f"took {(time.time()-tch0) : .1f} s.", logfile,quiet)
KeyboardInterrupt:
<Figure size 640x480 with 0 Axes>
[ ]:
