I-Front Test

We first consider the simplest example, HII region expansion around a single source of ionizing radiation and constant density field.

This test is known as the ionization front (I-front) test and is a standard test in reionization (Mellema+ 2006).

[2]:

import pyc2ray as pc2r
import numpy as np, matplotlib.pyplot as plt

from matplotlib.colors import LogNorm

import astropy.units as u

Analytical Solution

Here, we consider a source emitting \(\dot{N}_\gamma\) ionizing photons per unit of time igniting in a medium of neutral hydrogen with number density \(n_\mathrm{H}\).

The ionizing photons propagate, resulting in an I-front with a radius, \(r_I\), that ionizes the surrounding neutral gas. The I-front propagation speed, \(v_I\), is determined by the balance between the flux of ionizing photons and the number of neutral atoms.

\[n_\mathrm{H} \frac{dV_I}{dt} = \dot{N}_\gamma - \int_{V_I} n^2_\mathrm{H}\,C\alpha_B\,dV\]

where \(V_I = \frac{4\pi}{3}r^3_I\), and in this case, an analytical solution exist.

[3]:

# Analytical Solution
Ngamma = 1e54 / u.s
nH = 1.87e-4 / u.cm**3
alpha_B = 2.59e-13 * u.cm**3 / u.s
clump = 5

r_S = ((3*Ngamma/(4*np.pi*clump*alpha_B*nH**2))**(1./3)).to('kpc')
t_rec = (1.0 / (clump*alpha_B*nH)).to('Myr')

print("r_S = ", r_S)
print("t_rec = ", t_rec)

def r_I(t):
    return r_S * (1.0 - np.exp(-t/t_rec))**(1./3)

def v_I(t):
    return (r_S/(3*t_rec) * (np.exp(-t/t_rec))/(1.0 - np.exp(-t/t_rec))**(2./3)).to('km/s')

r_S =  564.0300697516011 kpc
t_rec =  130.85329347357774 Myr

Calculate analytical solution and plot results.

[4]:

t_evol = 5e8 # years

t_analytical = np.linspace(0, t_evol*u.yr, 200, endpoint=True).to('Myr')

r_analytical = r_I(t_analytical)
v_analytical = v_I(t_analytical[1:])

[5]:

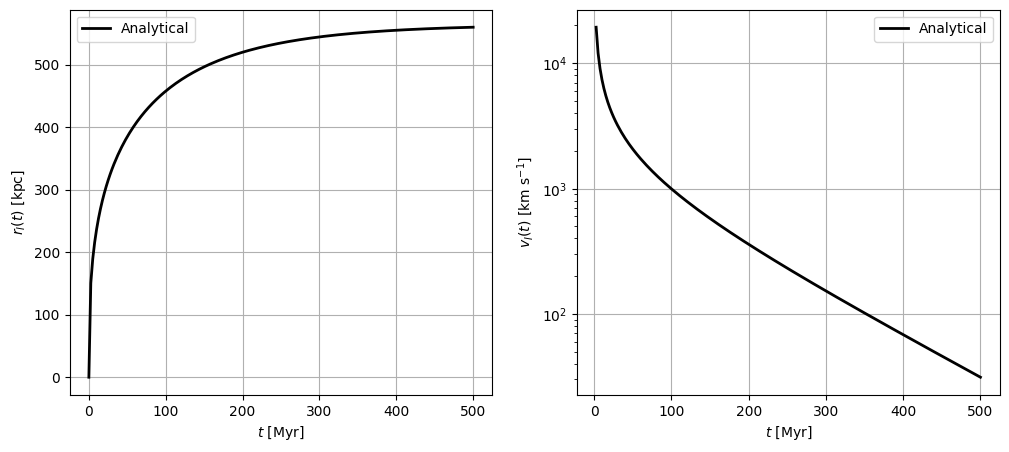

fig, axs = plt.subplots(figsize=(12,5), ncols=2, nrows=1)

axs[0].plot(t_analytical, r_analytical, color='black', ls='-', label="Analytical", lw=2)
axs[0].set_ylabel("$r_I(t)$ [kpc]")

axs[1].semilogy(t_analytical[1:],v_analytical,color='black',label="Analytical",lw=2)
axs[1].set_ylabel("$v_I(t)$ [km s$^{-1}$]")

for ax in axs:
    ax.set_xlabel("$t$ [Myr]")
    ax.grid()
    ax.legend()
../_images/examples_ifront_6_0.png

Numerical Solution

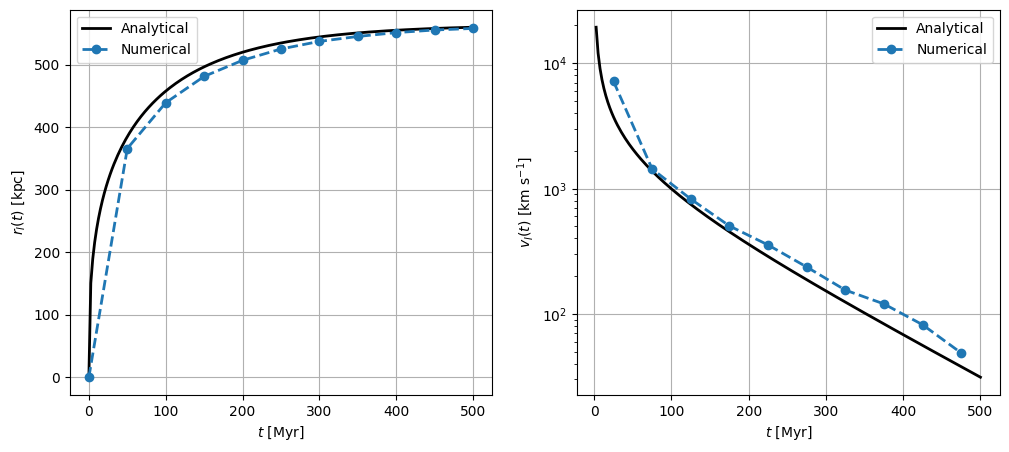

Here, we use pyC\(^2\)Ray to compute the I-front and test whether it provides the correct solution.

The coarseness of the numerical solution depends on the number of time steps. Here, we define the number of redshift steps we want to output. Increasing the value of numzred will refine the numerical solution and increase the computing time (numzred=10 takes approximately 15 minutes).

[6]:

numzred = 10

Define some global parameters and instance the test simulation class.

[7]:

# Global parameters
num_steps_between_slices = 1

# Create C2Ray object
sim = pc2r.C2Ray_Test(paramfile='parameters_ifront.yml')

                 _________   ____
    ____  __  __/ ____/__ \ / __ \____ ___  __
   / __ \/ / / / /    __/ // /_/ / __ `/ / / /
  / /_/ / /_/ / /___ / __// _, _/ /_/ / /_/ /
 / .___/\__, /\____//____/_/ |_|\__,_/\__, /
/_/    /____/                        /____/

Welcome! Mesh size is N = 256.
Simulation Box size (comoving Mpc): 1.620e+00
Cosmology is off.
Warning: Using grey opacity
Using Black-Body sources with effective temperature T = 5.0e+04 K and Radius  1.437e-11 rsun
Spectrum Frequency Range: 3.288e+15 to 1.316e+17 Hz
This is Energy:           1.360e+01 to 5.442e+02 eV
Integrating photoionization rates tables...
INFO: No heating rates

---- Calculated Clumping Factor (constant model):
 min, mean and max clumping : 5.000e+00  5.000e+00  5.000e+00

---- Calculated Mean-Free Path (constant model):
Maximum comoving distance for photons from source mfp = 15.00 cMpc (constant model).
 This corresponds to 2370.048 grid cells.

Using CPU Raytracing (subboxsize = 128, max_subbox = 1000)
Running in non-MPI (single-GPU/CPU) mode
Starting simulation...


Running: "C2Ray Test"

Read the source file and define some redshift step.

[8]:

# Generate redshift list (test case)
t_evol = 5e8 # years
zred_array = sim.generate_redshift_array(numzred+1,t_evol/numzred)

# Read sources
numsrc = 1
srcpos, srcflux = sim.read_sources("src_ifront.txt", numsrc)

show_plot = True
xc = np.linspace(0, sim.boxsize*1000, sim.N)

[9]:

# Start the timer ot measure the wall clock time
timer = pc2r.Timer()
timer.start()

# Loop over redshifts
for k in range(len(zred_array)-1):
    # Compute timestep of current redshift slice
    zi = zred_array[k]
    zf = zred_array[k+1]

    sim.printlog("\n==============\nDoing redshift %.3f to %.3f\n==============\n" %(zi, zf), sim.logfile)

    # Compute timestep of current redshift slice
    dt = sim.set_timestep(zi,zf,num_steps_between_slices)

    # Write output
    sim.write_output(zi)

    # Set density (when cosmological is false, zi has no effect)
    sim.density_init(zi)

    # Set redshift to current slice redshift
    sim.zred = zi

    # Do num_steps_between_slices timesteps
    for t in range(num_steps_between_slices):
        sim.printlog("\n --- Timestep %d. Redshift: z = %.3f --- \n" %(t+1, sim.zred), sim.logfile)

        # Evolve Cosmology: increment redshift and scale physical quantities (density, proper cell size, etc.). If cosmology is disabled in parameter, this step does nothing (checked internally by the class)
        sim.cosmo_evolve(dt)

        # Evolve the simulation: raytrace -> photoionization rates -> chemistry -> until convergence
        sim.evolve3D(dt, srcflux, srcpos)

        # Register elapsed Wall clock time
        tnow = timer.lap('k=%d, t=%d' %(k,t))

    # Show results at each redshift step
    if show_plot:

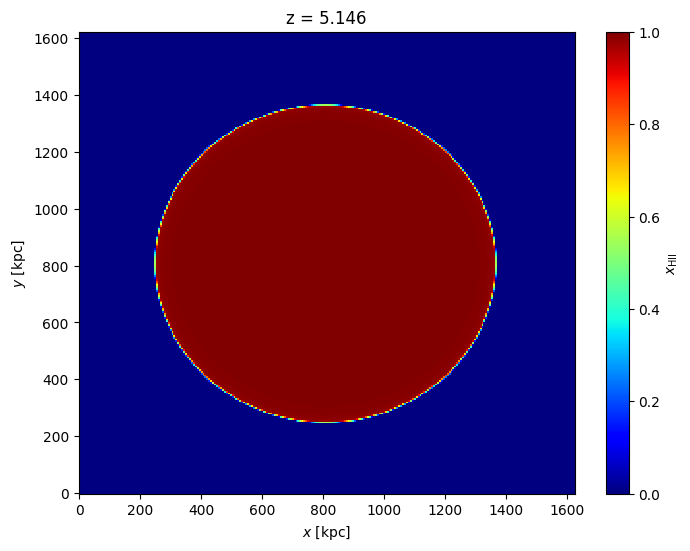

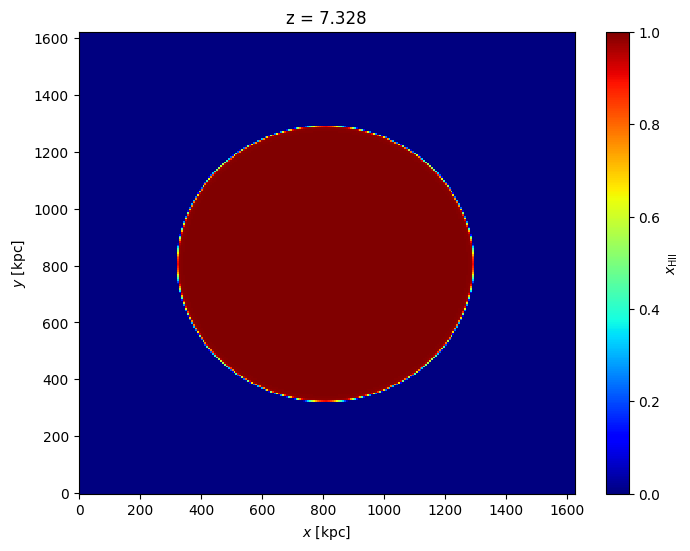

        fig, ax = plt.subplots(figsize=(8, 6), ncols=1, nrows=1)
        ax.set_title('z = %.3f' %sim.zred)
        im = ax.pcolormesh(xc, xc, sim.xh[:,:,sim.N//2], vmin=0, vmax=1, cmap='jet')
        plt.colorbar(im, ax=ax, label=r'$x_\mathrm{HII}$')
        ax.set_xlabel('$x$ [kpc]'), ax.set_ylabel('$y$ [kpc]')
        plt.show(), plt.clf()

# Write final output
sim.write_output(zf)

# stop the timer and print the summary
timer.stop()
sim.printlog(timer.summary, sim.logfile)
